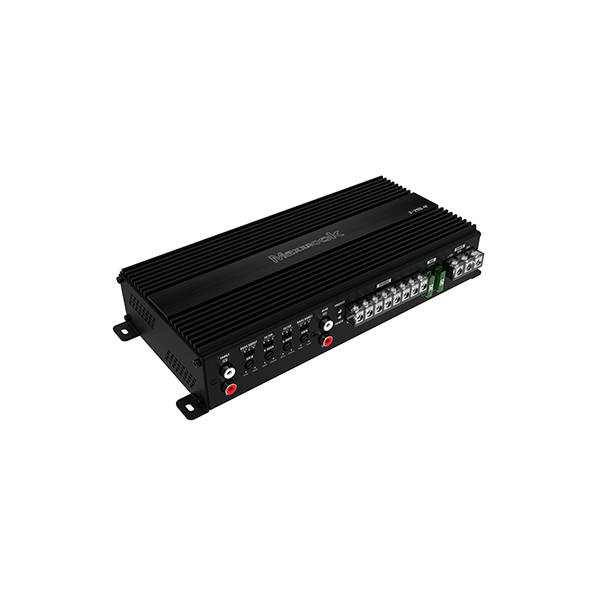

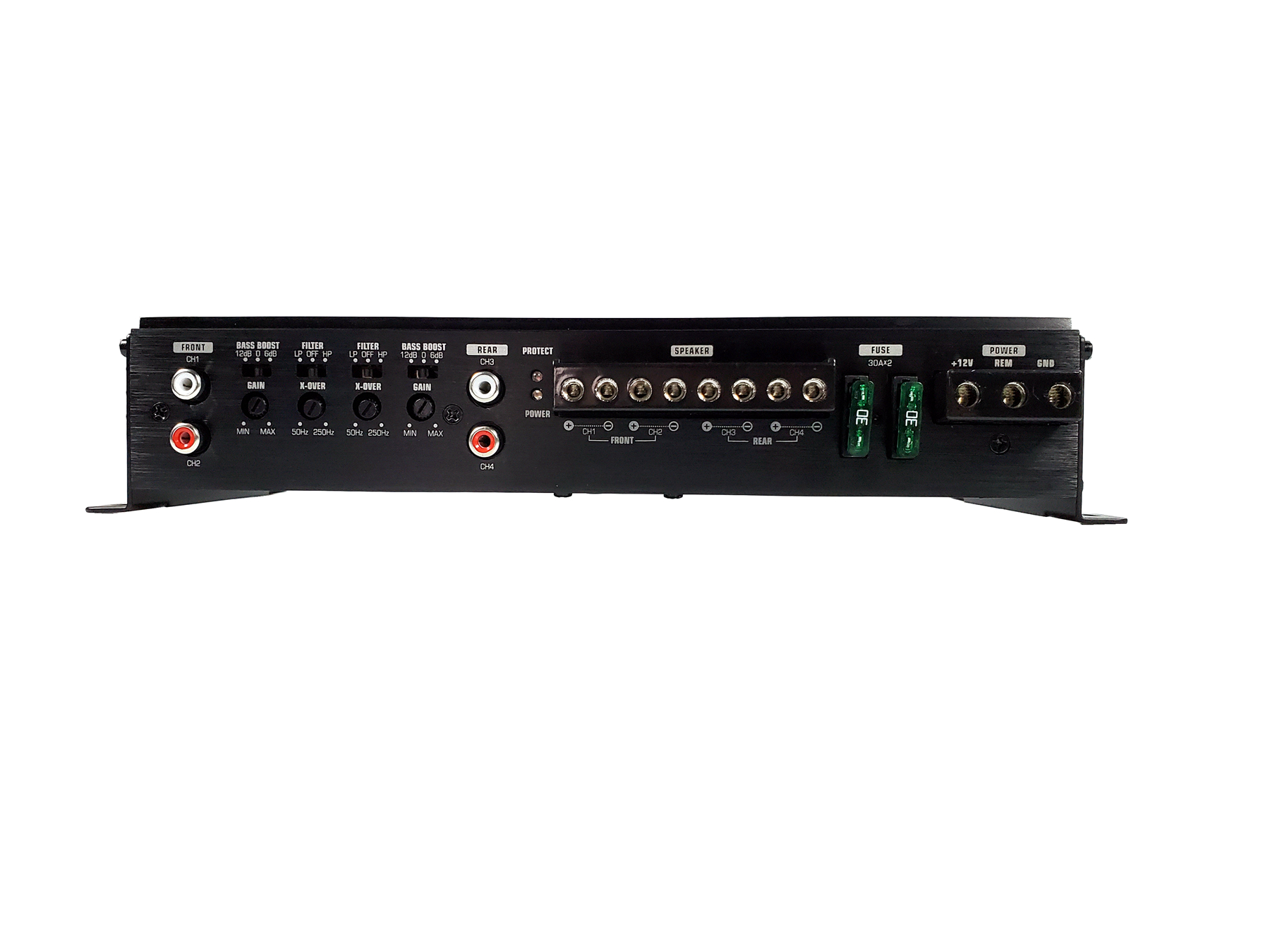

Z-200.4F
Features：
· 2 Ohm load stable.
· Double side FR-4 PCB,high quality SMT components.
· Full MOSFET circuit design.
· Adjustable low pass filter.
· Adjustable bass boost level.
· Overload, short circuit, thermal, low voltage protection.
· Easy bridging operation.
Basic Info
| RMS @ 4 Ohm | 100W×4 |
| RMS @ 2 Ohm | 180W×4 |
| BTL(Bridge Power) | 250W×2 |
| Frequency Response | 20Hz - 20 kHz |
| S/N Ratio | >80 dB |
| THD | ≤0.5% |
| Input Sensitivity Level | 0.2V - 6V |
| LPF | 50Hz - 250Hz |
| HPF | 50Hz - 250Hz |
| Subsonic Filter | 5Hz - 50Hz |
| Dimension(L×W×H) | 253×120.5×48 mm |
