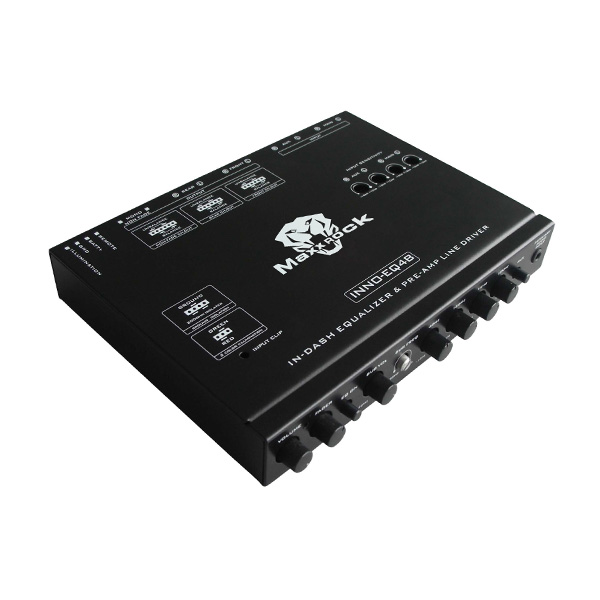

4 Band Equalizer
Features:
Basic Info
| 4-Band EQ | Low-pass freq: 35Hz - 250Hz |
| Bass: 20Hz - 60Hz | |
| Mid-bass: 120Hz - 300Hz | |
| Mid: 1kHz - 2kHz | |
| High: 7kHz - 20kHz | |
| Boost/ Cut | +18dB |
| S/N Ratio | 105dB ref 1 volt input |
| Frequency Response | 10Hz - 50kHz + IdB8 |
| Max. Output Voltage | Volts RMS |
| THD | 0.005% |
| Sensitivity | 50mV - 3V RMS |
| Head Room | 20 dB |
| Input Impedance | 10k Ohms |
| Separation | 65dB/ 1kHz |
| Operating Voltage | 11- 15 Volts |
| Output Impedance | 50k Ohms |
| Size | 26.5mm x 183mm x 94mm (H x W x D) |
