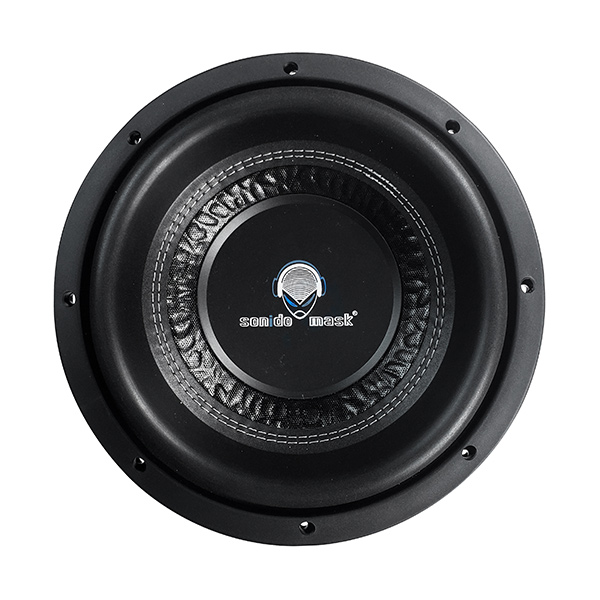

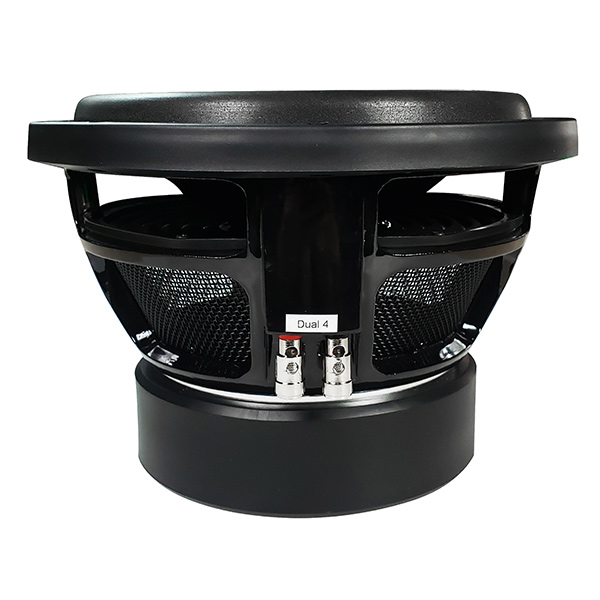

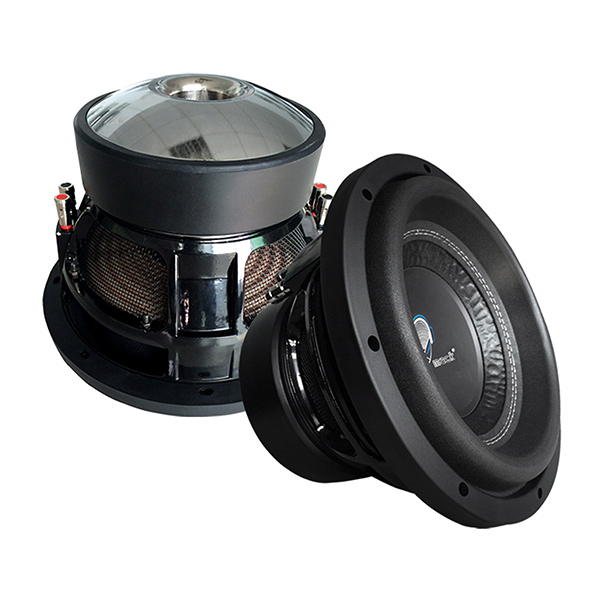

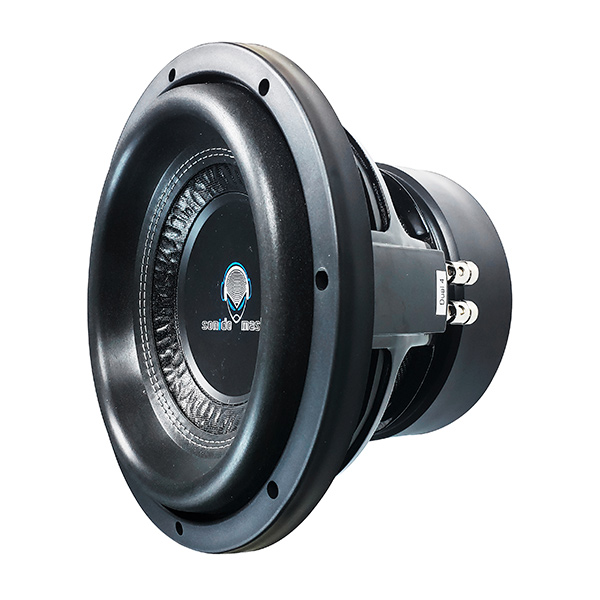

ZX-10D2
ZX-10D2 10"Subwoofer
(600Watts RMS Sealed Enclosure)

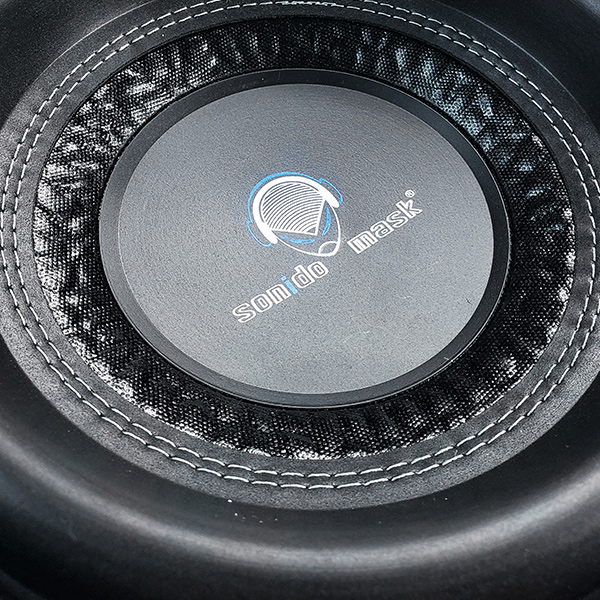

.10”custom tooled high efficiency non pressed paper cone with foam surround
.Heavy aluminum die-cast basket
.3" CCAW Voice coil
.2x65 oz magnet
.1200 Watts peak/600 Watts RMS
.Impedance:Dual 2 ohm
.Sensitivity:89 dB(1 Watt/1 Meter)
.Mounting Depth: 6.47 Inch( 164.5 mm)
Basic Info
|
ZX-10D2 Speaker Impedance |
table |
1 ohms |
4 ohms |
|
Free Air Resonance |
Fs |
38.5 |
38.5 |
|
Total Q Driver @ Fs including all resistance% |
Qts |
0.4168 |
0.4175 |
|
Q of the Driver@ Fs including non electronical resistance only |
Qms |
4.132 |
4.116 |
|
Q of the Driver @Fs including electronical resistance only |
Qes |
0.464 | 0.465 |
|
The Driver% compliance expressed as an equivalent |
Vas |
19.77L | 19.77L |
|
Volume of all (cubic Ft) |
|
0.698 | 0.698 |
|
The Driver%s linear displacement (inches) |
Xmax | 20 | 20 |
|
The Dc resistance of the driver% twin voice coils &ohms |
Re | 0.96 | 3.85 |
|
Thermal Power rating of the Driver(RMS/Peak) |
Pe |
600W/1200W |
600W/1200W |
|
The Driver% sensitivity(dB) |
Sens |
88 |
88 |
